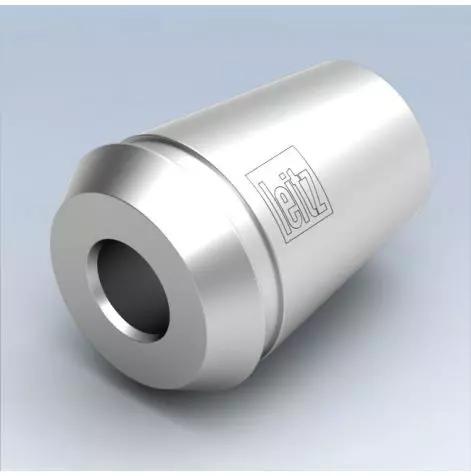

Shrink collet d3/D17/L27

Shrink collet ThermoGrip®, TER - ER16, DIN ISO 15488
Shrink collet d3/D17/L27
Application: High precision tool chuck for clamping shank tools by thermal shrinking. Has the highest stability and rigidity of all known shank tools clamping systems, suitable for HSC and HPC machining.
Replacement for conventional spring collets to increase concentricity, rigidity and speed strength. Universal design for the adaptation of shank tools in machining aggregates as well as direct clamping in spindles with integrated collet adaptor. For clamping of carbide and steel shanks. Clamping eccentricity e ≤ 0.01 mm.Attention: In order to mount the collet nut in the shrinked tool, the tool diameter is not allowed to be larger than the collar diameter (DB) stated in the table. In individual cases the existing clamping nut must be exchanged with the version stated in the table.
