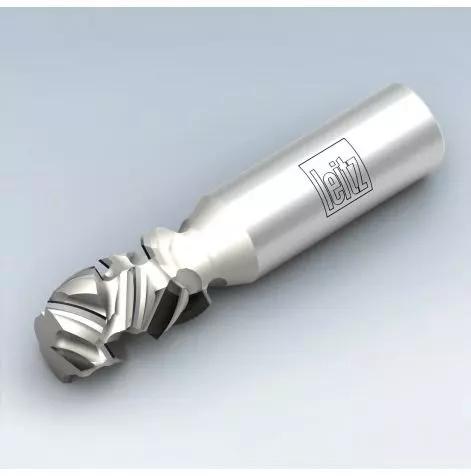

Router cutter Diamaster QUATTRO EdgeExpert DP/D20/NL32/S20x50/GL90/RH

Router cutter Diamaster QUATTRO EdgeExpert, Z 2+2
Router cutter Diamaster QUATTRO EdgeExpert DP/D20/NL32/S20x50/GL90/RH
Application: Routers for sizing and grooving with increased performance time in engineered wood boards. For tear-free cutting edges on both sides especially for sensitive and brittle decorative papers, laminating foils and veneers. Suitable for medium and large batch sizes. Z 2+2 for increased feed rates.
Machine: Stationary routers with/without CNC control, machining centres, milling machines with spindles to mount shank tools.
Workpiece material: Chipboard and fibre materials (MDF, HDF etc.), uncoated, plastic coated, veneered etc., laminated veneer lumber (plywood, multiplex plywood etc.).
Spiral cutting edge arrangement with alternate shear angle and DP plunging tip. Enlarged shear angle for excellent edge quality for sensitive and brittle decorative papers, laminating foils and veneers. Resharpenable 4 to 6 times with normal wear. Precutting the workpieces is recommended. Cuts to be painted in MDF require finishing with tools with continuous edges.
