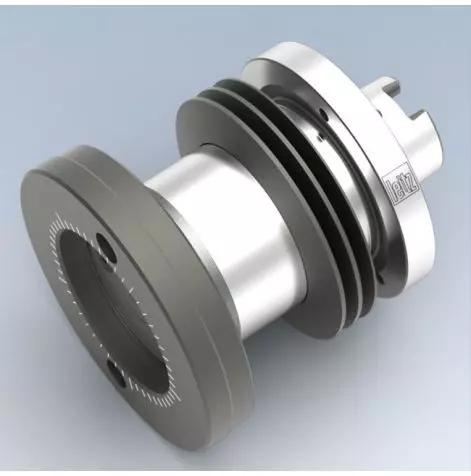

Hydro clamping arbor HSK-F 63-M HSK-F63-M, A=12,5, d=60

Hydro clamping arbor HSK-F 63 mod. with stepless fine adjustment
Hydro clamping arbor HSK-F 63-M HSK-F63-M, A=12,5, d=60
Application: Hydro clamping arbor for precise and play-free mounting of tools with bore such as circular sawblades, toolsets and sets of cutterheads for high concentricity. Fine thread design of the hydro clamping arbor allows stepless fine adjustment of multi part tooling sets.
Machine: Machines with HSK-F 63 adaptor, e.g. laminate and parquet flooring lines, edgebanding machines, double-end tenoners, profile cutting machines etc.
Closed hydro clamping system with maintenance free pressurising piston mechanism. User friendly axial positioned hydro clamping screw. Play-free and precise mounting of tools with bores on hydro clamping arbors. Suitable for RH and LH.RPM nmax 12000-1.Note: Check the allowed maximum RPM of the tool mounted on the arbor!
