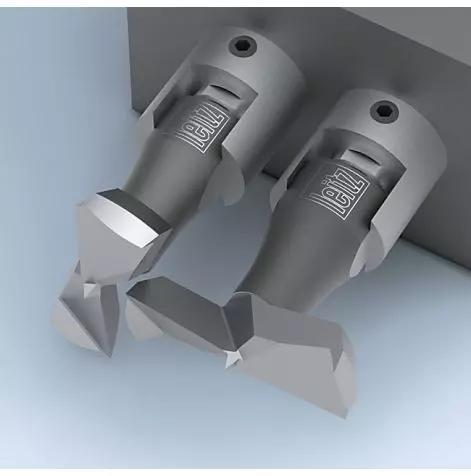

Hinge boring bit HW/D30/S10x23/Z2

Hinge drillset HW-solid, shank 10 mm, double furniture hinge, Z 2 / V 2
Hinge boring bit HW/D30/S10x23/Z2
Application: For drilling hinges and pivots in window manufacturing in single or twin drill design.
Machine: Stationary routers with/without CNC control, machining centres, special cutting machines to machine frame parts, drilling machines, multi spindle units.
Workpiece material: Softwood and hardwood, modified timber for window construction, laminated veneer lumber (plywood, multiplex plywood etc.), glued lumber.
Round spur geometry for high edge quality. Solid tungsten carbide design (ID 037218 / 037219 TC-tipped). High wear resistant tungsten carbide grade. Minimum distance of drill spindle 22 mm. ID 037218 / 037219 with pre-drill for corner pivots with pilot pin.
