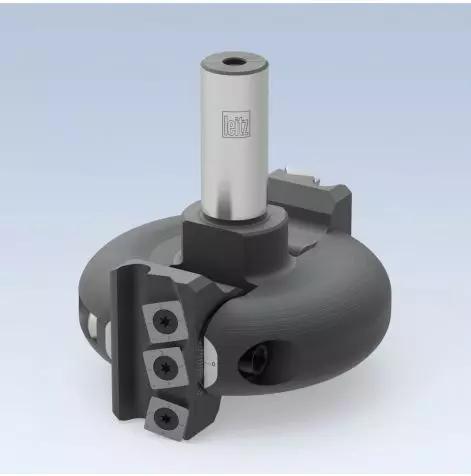

HeliCut cutterhead swivelling HW/D120/SB57/S25x60/Z1+1/RL

HeliCut bevelling cutterhead, swivelling
HeliCut cutterhead swivelling HW/D120/SB57/S25x60/Z1+1/RL
Application: For jointing and bevelling with adjustable bevel angle.
Machine: Stationary routers with/without CNC control, machining centres.
Workpiece material: Softwood and hardwood, laminated veneer lumber, plastomers, technical foams (XPS, PU), limited suitable for MDF and chipboard (uncoated or coated).
Knife holder can be swivelled steplessly on both sides from 0 - 65°. Quick and easy adjustment of conventional angles (15°, 30°, 45°, 60°) due to additional locking positions in 15° steps. Design with divided cutting edges and optimized gullet areas for low-noise working with low cutting pressure even at high cutting performance. Workpiece edges free of tear-out on both sides even in critical materials due to alternating shear angle. Cutting edges with particularly precise geometry and polishing for long tool life and machining of "soft" materials. Economical due to partially exchangeable solid carbide blades with 4 cutting chamfers.
